Since its introduction at MINExpo 2000, the High Capacity Chassis design has evolved from a battery powered model to include cable operated shuttle cars. This High Capacity Chassis design has been proven to increase the payload of each trip.

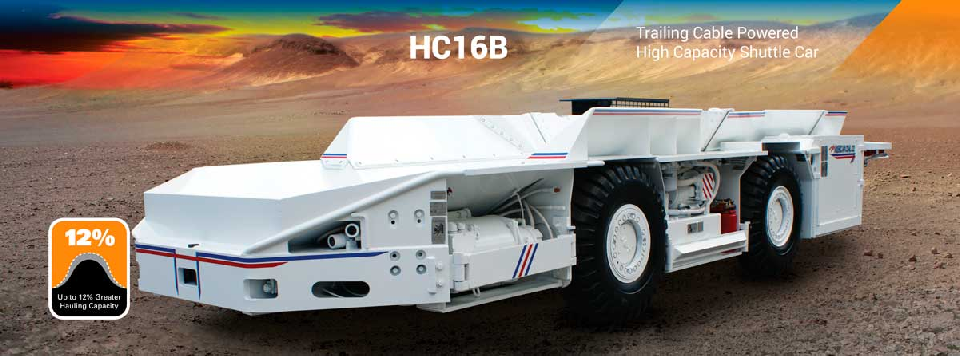

Trailing Cable Powered High Capacity Shuttle Car (16 Tonnes)
Increased Payload, Heavy Duty Unibody Chassis & Advanced Wheel Unit Design
- AC inputs available starting at 480 through 1140 Volts – 50 or 60 Hz
- VFD electronics available for the AC or DC inputs
- VFD traction motors 2x75hp (55kw) and 2x115hp (85kw)
- VFD conveyor motors 35hp (26kw) and 75hp (55kw)
- Pump motors 30hp (22kw) or 25hp (19kw)
- Halogen lighting with automatic controls
- Conveyor width options: 36”(91.44cm), 40”(101.6cm), 48”(121.92cm), 56”(142.24cm), 64”(162.56cm)
- Conveyor sideboard combinations to match capacity requirements
- Elevating conveyor discharge boom
- Conveyor discharge time – 30 to 40 seconds
- Grease type take-up mechanism with shims
- Single and dual heavy duty worm gear drives available
- Interchangeable planetary type wheel units
- Full time 4-wheel drive / 4-wheel steering
- Electronic traction differential for precise steering
- Tram speed: empty – 6 mph (9.6 Km/h) full – 5.5 mph (8.5 Km/h)
- Automotive type steering draglinks with heavy duty tie rod ends
- Indexed steering components for easy wheel alignment
- Gear type hydraulic pump
- Pressure type and spin-on type filters available
- Injector type oil fill pump
- Hydraulic, fire and lube systems hose ends – JIC, MPT or Staple-Loc
- Dry chemical fire suppression
Variable Speed Tram and Convey
Liquid Cooling Available for Electronics in Extreme Mining Conditions
Diagnostic Display Aids in Troubleshooting
Operator Can Be Located on RH or LH
Wet Multi-Disc Brake
Cable Reel Capacity ≥ 190 Meters
Trailing Cable Connects to Machine Using a Plug
Service Cylinders
4-Wheel Independent Suspension
Dual Loader Type Conveyor Chain
Audio/Visual Safety Device
MineSMART Technology Package
