Since its introduction at MINExpo 2000, the High Capacity Chassis design has evolved from a battery powered model to include cable operated shuttle cars. This High Capacity Chassis design has been proven to increase the payload of each trip.

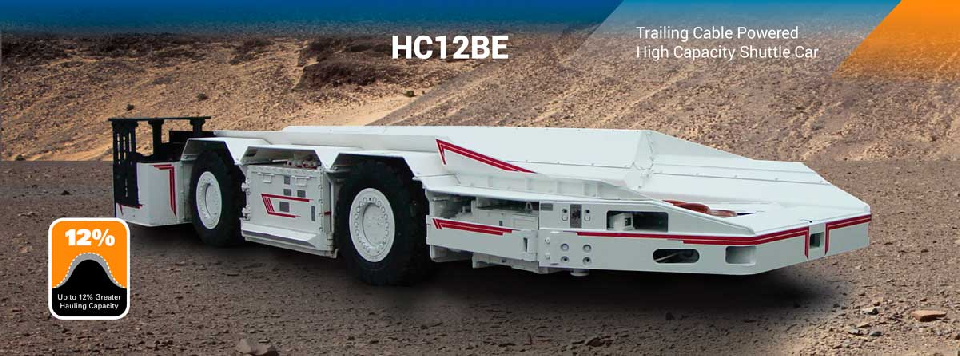

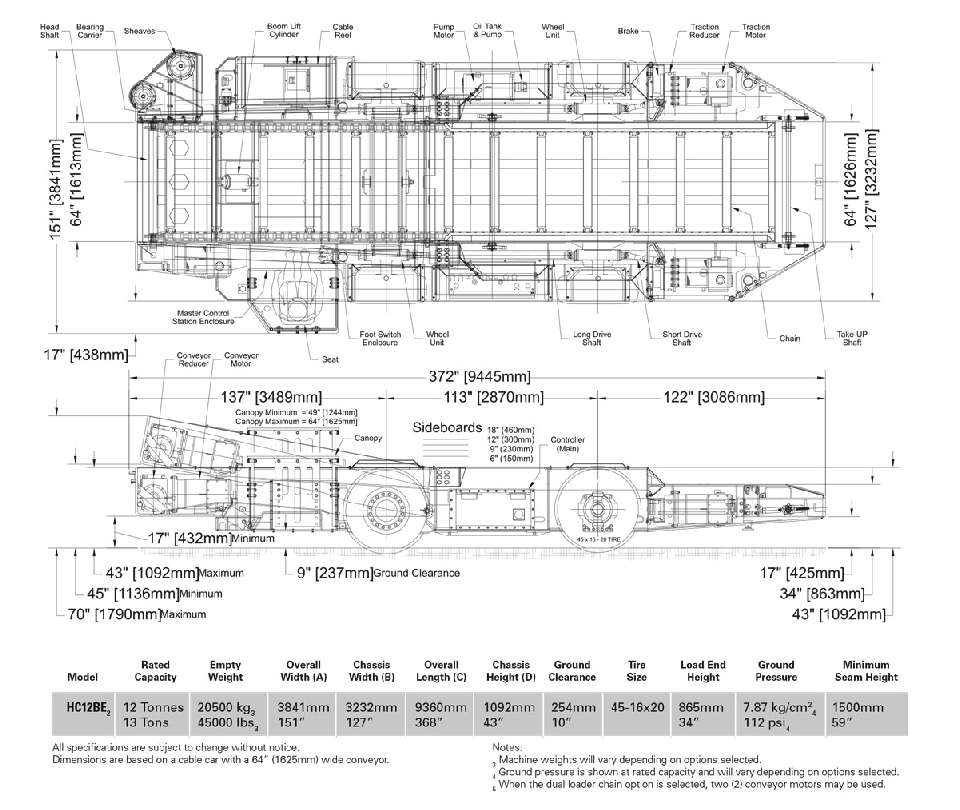

Trailing Cable Powered High Capacity Shuttle Car (12 Tonnes)
Increased Payload, Heavy Duty Unibody Chassis & Advanced Wheel Unit Design
AC inputs available starting at 480 through 1140 Volts – 50 or 60 Hz
VFD electronics available for the AC or DC inputs
VFD traction motors 2x75hp (55kw) and 2x115hp (85kw)
